Modular design automatic in line sleeve wrapping machine to wrap with shrink film different kind of products at one level only.

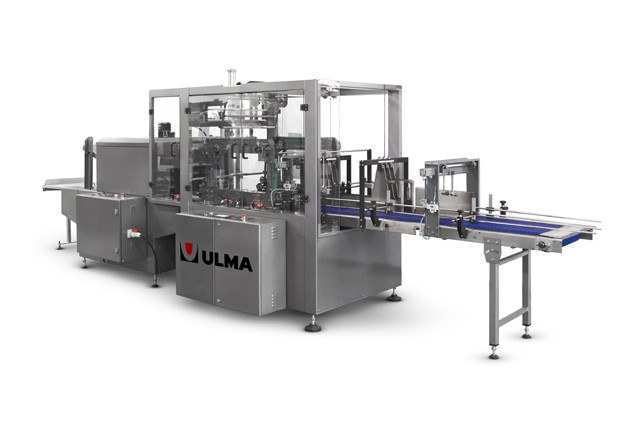

Automatic in line sleeve wrapper ULMA brand, model EPB, of modular design, to wrap with flat shrink film different kinds of groups of products at one level only.

The sleeve wrapping machines work with two flat rolls of film, cross sealed. Complete closing of the pack is not needed.

  • Maximum product height: 350 mm.
  • Productions up to 1.080 unitary products / h depending on product and film.
  • Powered in feed belt, in line, with speed regulation for automatic loading of the product.
  • Powered reel holders (top and bottom).
  • Sealing and cutting with hot clamp with electronic regulation of temperature. Low maintenance of the sealing clamp.
  • Safety system in the sealing clamp to protect the operator and/or the product.
  • Pneumatic presser over the exit table to hold the product during the cutting and sealing process.
  • Powered out feed belt with speed regulation.
  • Option to work with cardboard plate.
  • Control panel of simple use for all machine functions.
  • Machine of modular design. Heavy duty frame construction made on painted and laminated steel tube.
  • Wheels and height adjustable legs for transport and positioning.
  • Machine orientation: from right to left.
  • Easy access to all elements.
  • Electric cabinet with ventilation.
  • Available in painted and stainless steel version.
  • Protections and safety systems according to CE norms.
